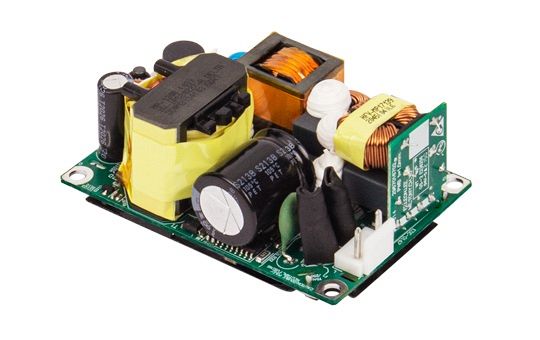

MEP-120A12J

2" x 3" x 1.2" Package with base. Up to 16.67 W/inch3 power density. Up to 120 W output with natural convection cooling. Up to 150 W peak power for 10 sec. No Load Consumption < 0.21 W. Up to 70 °C Ambient Operation. Up to 700KHrs MTBF. 2 x MOPP Isolation. Suited for Type BF Medical Products. Class B Conducted and Radiated EMI. IEC60601-1-2 4th Edition Immunity Compliance.

Main specifications MEP-120A12J:

Input Voltage Range: 90-264Vac

Input Frequency Range: 47-63Hz

Output Current: 9.5A

Output Power: 114W

Dimensions (LxWxD): 76.2 x 50.8 x 31 mm (3.00” x 2.00” x 1.22”)

Unit Weight: 0.14 kg (0.31 lb)
