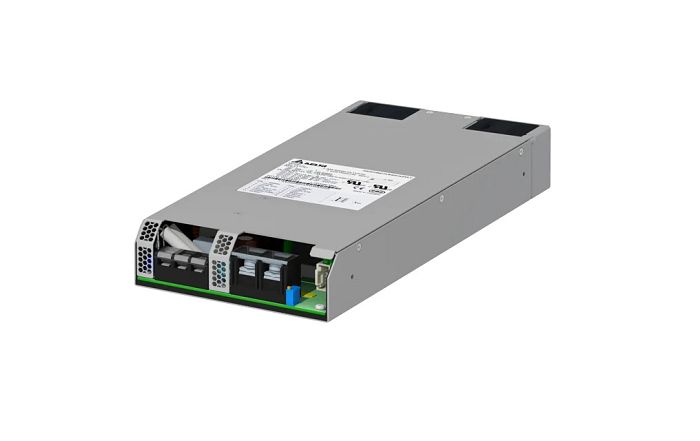

IMA-S2000-48-YV

Safety approval for Medical (IEC 60601-1-2 and 3rd+A1 edition CB report) TUV EN60601-1:2006. CAN/CSA-C22.2 NO.60601-1 + ANSI/AAMI, ES 60601-1, 3000m altidude, 100-240Vac only. Industrial (IEC 62368) and IT IEC60950-1 CB report, IEC62368-1 CB report, TUV EN62368-1, UL62368-1 and CAN/CSA C22.2 No. 62368-1. 3000 Watt peak power (up to 5s). Standby power < 2 Watt. Wide operating input voltage range: 80 Vac to 275 Vac or 120 Vdc to 300 Vdc. Wide adjustable output voltage range (+/- 20%). Standby output 5 Vdc / 2 A. High efficiency: up to 94%. Size: 309.6 x 127 x 40.6 mm (12.2 x 5 x 1.6 in) (1U design). Low acoustic noise level of less than 39 dB(A), variable speed fan control. Active current sharing. 2 × MOPP and BF appliances. PMBus™ compatible for control, programming and monitoring. 500,000 hour MTBF. Optional conformal coating. 3 years warranty.

Main specifications IMA-S2000-48-YV:

Input Voltage Range: 80-275Vac

Input Frequency Range: 47-63Hz

Input Current: 17.2 A @80 Vac / 11 A @120 Vdc

Nominal Output Voltage: 48V

Output Voltage Adjustment Range: 38.4 V – 57.6 V

Nominal Output Current: 41.6A

Output Power: 2000W

Dimensions (L x W x D) :  309.6 x 127 x 40.6 mm (12.19” x 5.00” x 1.60”)

Unit Weight :  2kg (4.41 lb)
