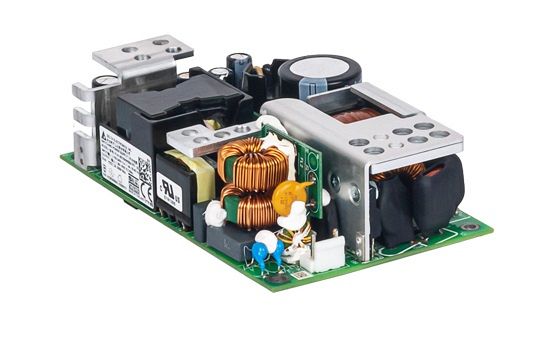

PJH-24V300WBCA

Major safety approvals include IEC/EN/UL 60950-1, IEC/EN/UL 62368-1, IEC/EN 60335-1, IEC/EN 61558-1 and IEC/EN 61558-2-16. Available for Class I or Class II (double isolation) configuration with universal AC input voltage range. 300W fan cool and up to 240W convection cool. High efficiency up to 94.0% efficiency. Built-in active PFC, remote On/Off, remote sense, power good signal and 12VSB (6W) or optional 5VSB (6W). No load input power consumption < 0.5W and low earth leakage current < 0.75mA. Extreme low temperature cold start at -40°C.

Main specifications PJH-24V300WBCA:

Input Voltage Range: 90-264Vac

Input Frequency Range: 47-63Hz

Output Voltage Adjustment Range: 22.8-25.2Vdc

Output Current: 12.5A

Output Power: 300W

Dimensions (LxWxD): 127 x 76.2 x 35.8 mm (5.00" x 3.00" x 1.41")

Unit Weight: 0.45 kg (0.99 lb)
