Delta PJH series

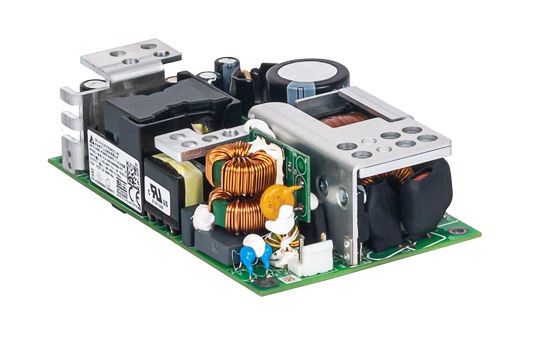

PJH-36V300WBCA
Major safety approvals include IEC/EN/UL 60950-1, IEC/EN/UL 62368-1, IEC/EN 60335-1, IEC/EN 61558-1 and IEC/EN 61558-2-16. Available for Class I or Class II (double isolation) configuration with universal AC input voltage range
300W fan cool and up to 240W convection cool. High efficiency up to 94.0% efficiency. Built-in active PFC, remote On/Off, remote sense, power good signal and 12VSB (6W) or optional 5VSB (6W). No load input power consumption < 0.5W and low earth leakage current < 0.75mA. Extreme low temperature cold start at -40°C.
Main specifications PJH-36V300WBCA:
Input Voltage Range: 90-264Vac
Input Frequency Range: 47-63Hz
Output Voltage Adjustment Range: 34.2-37.8Vdc
Output Current: 8.3A
Output Power: 300W
Dimensions (LxWxD): 127 x 76.2 x 35.8 mm (5.00" x 3.00" x 1.41")
Unit Weight: 0.45 kg (0.99 lb)
