Universal AC input voltage range. 400W with fan cool and up to 200W convection cool
Standard industrial footprint of 3” x 5”. Low inrush current < 20A and up to 90.0% efficiency. Conforms to harmonic current IEC/EN 61000-3-2, Class C. Low earth leakage current < 500μA. Extreme low temperature operation at -40°C. Lighting approval to UL 8750, IEC 61347-2-13 and others approval to IEC 60950-1, IEC 62368-1.

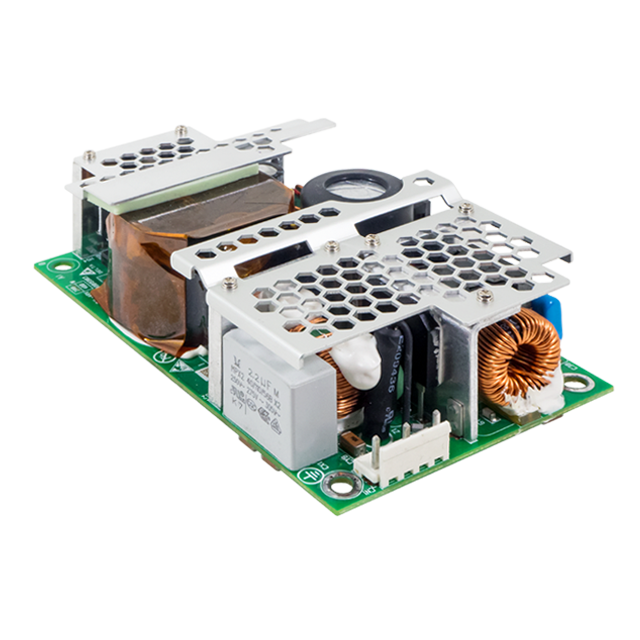

Main specifications PJl-48V400WBAA:

Input Voltage Range: 85-305Vac

Input Frequency Range: 47-63Hz

Output Voltage Adjustment Range: 48.50Vdc

Output Current: 8.33A

Output Power: 400W

Dimensions (LxWxD): 127 x 76.6 x 39.3 mm (5.00" x 3.02" x 1.55")

Unit Weight: 0.42 kg (0.93 lb)
