Delta PJU series

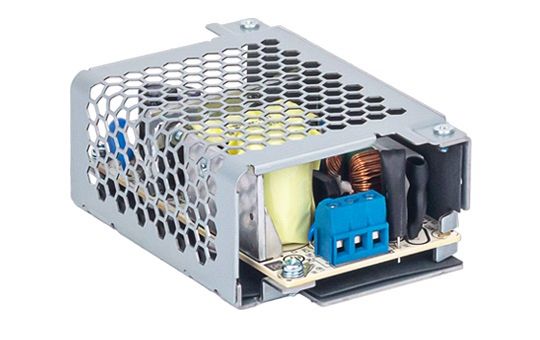

PJU-13V60WCBA
Universal AC input voltage range. Zero switch over time from loss of AC to battery operation. Protection against reverse polarity battery connection. Built-in diagnostic monitoring for AC OK and Battery Low status. Overvoltage / Overcurrent / Over Temperature / Short circuit Protections. Built-in over current and short circuit protection in Buffering (battery discharging) mode operation.
Main specifications pju-13v60wcba:
Input Voltage Range: 90-264Vac
Input Frequency Range: 47-63Hz
Nominal Output Voltage: 13.8V
Output Current: 4.3A
Output Voltage Adjustment Range: 13.52-14.00V
Output Power: 60W
Dimensions (L x W x D) : 103.4 x 62 x 37 mm (4.07" x 2.44" x 1.46")
Unit Weight : 0.25 kg (0.55 lb)
