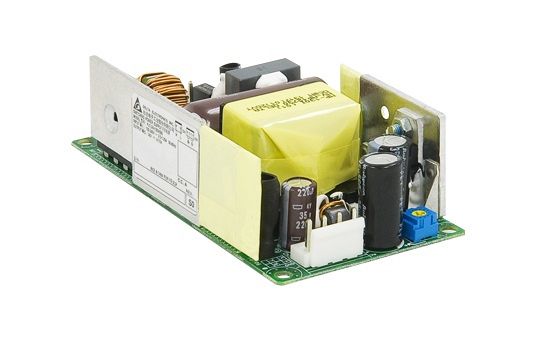

PJT-12V100WBBA

Universal AC input voltage. Standard industrial foot print of 2” x 4”. Low leakage current < 0.1mA. High MTBF > 700,000 hrs as per Telcordia SR-332. Multiple connector source option.

Main specifications pjt-12v100wbba:

Input Voltage Range: 90-264Vac

Input Frequency Range: 47-63Hz

Nominal Output Voltage: 12V

Nominal Output Current: 6.7A

Output Power: 80W

Dimensions (L x W x D) :  101.6 x 50.8 x 31.8 mm

Unit Weight :  0.15 kg (0.33 lb)
