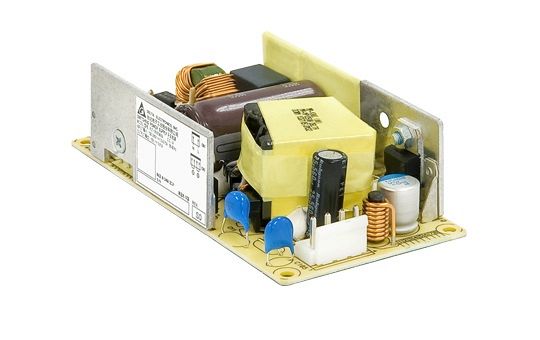

PJT-18V65WBAA

Universal AC input voltage. Standard industrial foot print of 2” x 4”. Low leakage current < 0.1mA. Convection cooled operating temperature range from -10°C to +70°C. High MTBF > 700,000 hrs as per Telcordia SR-332. Multiple connector source options.

Main specifications pjt-18v65wbaa:

Input Voltage Range: 90-264Vac

Input Frequency Range: 47-63Hz

Nominal Output Voltage: 18V

Nominal Output Current: 3.6A

Output Power: 65W

Dimensions (L x W x D) :  101.6 x 50.8 x 30 mm

Unit Weight :  0.13 kg (0.29 lb)
