Delta PJT series

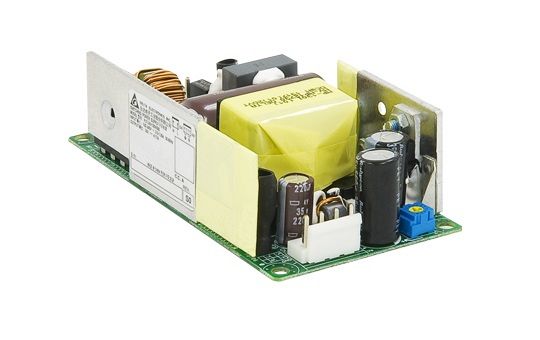

PJT-18V100WBBA
Universal AC input voltage. Standard industrial foot print of 2” x 4”. Low leakage current < 0.1mA. High MTBF > 700,000 hrs as per Telcordia SR-332. Multiple connector source options.
Main specifications pjt-18v100wbba:
Input Voltage Range: 90-264Vac
Input Frequency Range: 47-63Hz
Nominal Output Voltage: 18V
Nominal Output Current: 4.4A
Output Power: 80W
Dimensions (L x W x D) : 101.6 x 50.8 x 31.8 mm
Unit Weight : 0.15 kg (0.33 lb)
