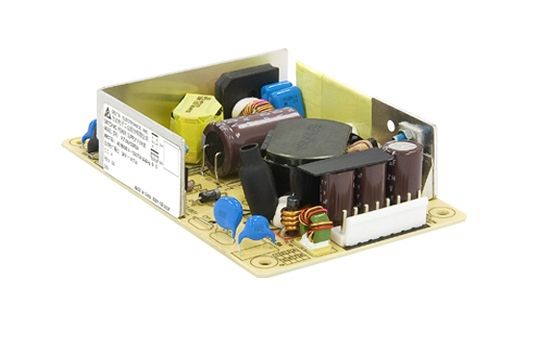

PJT-24V100WBAA

Universal AC input voltage. Standard industrial foot print of 3” x 5”. Low leakage current < 0.1mA. Convection cooled operating temperature range from -10°C to +70°C. High MTBF > 700,000 hrs as per Telcordia SR-332. Multiple connector source options.

Main specifications pjt-24v100wbaa:

Input Voltage Range: 90-264Vac

Input Frequency Range: 47-63Hz

Nominal Output Voltage: 24V

Nominal Output Current: 4.1A

Output Power: 100W

Dimensions (L x W x D) :  127 x 76.2 x 31 mm

Unit Weight :  0.21 kg (0.46 lb)
