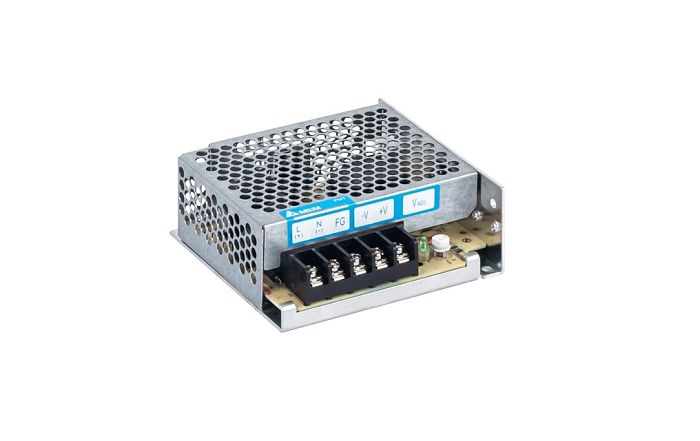

PMT-5V35W1AA

Universal AC input range. Power will not de-rate from input voltage 100Vac to 264Vac. High MTBF > 700,000 hrs. per Telcordia SR-332. Short Circuit / Overvoltage / Overload / Over Temperature Protections. Versatile connector options (Terminal Block, Front Face, Harness).

Main specifications pmt-5v35w1aA:

Input Voltage Range: 85-264Vac

Input Frequency Range: 47-63Hz

Nominal Output Voltage: 5V

Output Voltage Adjustment Range: 4.50-5.50Vdc

Nominal Output Current: 7A

Output Power: 35W

Dimensions (L x W x D) :  98 x 98 x 38 mm
Dimensions (L x W x D) :  3.86" x 3.86" x 1.50"

Unit Weight :  0.23 kg (0.51 lb)
