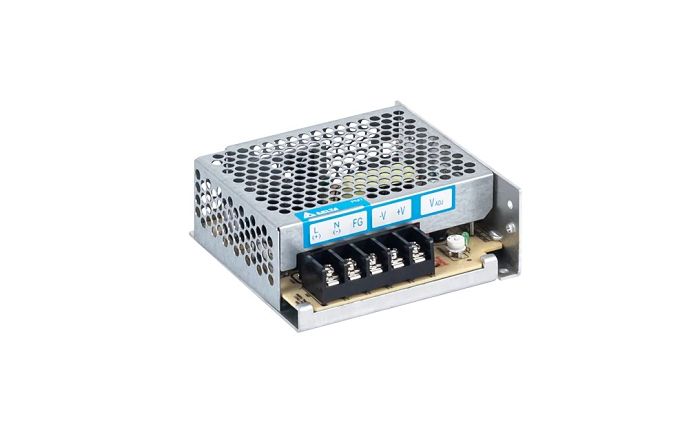

PMT-12V35W1AA

Universal AC input range. Power will not de-rate from input voltage 90Vac to 264Vac. High MTBF > 700,000 hrs. per Telcordia SR-332. Short Circuit / Overvoltage / Overload / Over Temperature Protections. Versatile connector options (Terminal Block, Front Face, Harness).

CONFIGURATION OPTIONS

T – EnclosedL – L Frame *

B – Open Frame (Bareboard) *

* Options

Main specifications pmt-12v35w1aA:

Input Voltage Range: 90-264Vac

Input Frequency Range: 47-63Hz

Nominal Output Voltage: 12V

Output Voltage Adjustment Range: 11-14Vdc

Nominal Output Current: 2.92A

Output Power: 35W

Dimensions (L x W x D) :  98 x 98 x 38 mm
Dimensions (L x W x D) :  3.86" x 3.86" x 1.50"

Unit Weight :  0.22 kg (0.49 lb)
