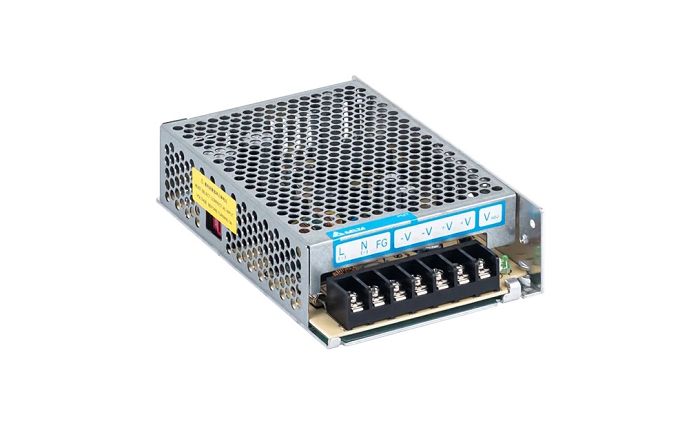

PMT-24V100W1AA

Conforms to harmonic current IEC/EN 61000-3-2, Class A. Selectable AC Switch (90-132Vac, 180-264Vac). High MTBF > 700,000 hrs. as per Telcordia SR-332. Versatile configuration options (Enclosed, L Frame). Versatile connector options (Terminal Block, Front Face, Harness).

Main specifications pmt-24v100w1aA:

Input Voltage Range: 90-132Vac ( Selectable by switch 180-264 Vac )

Input Frequency Range: 47-63Hz

Nominal Output Voltage: 24V

Output Voltage Adjustment Range: 22.8-26.4Vdc

Nominal Output Current: 4.5A

Output Power: 108W

Dimensions (L x W x D) :  158 x 97 x 38 mm
Dimensions (L x W x D) :  6.22" x 3.82" x 1.50"

Unit Weight :  0.36 kg (0.79 lb)
