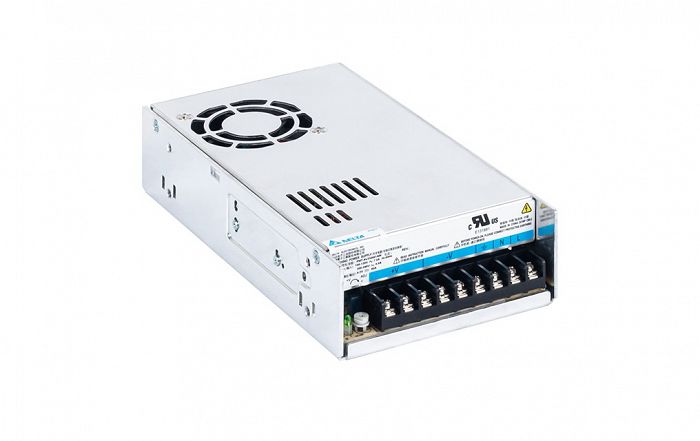

PMT-4V350W1A

AC input range selectable by switch. Full Aluminium casing for light weight and corrosion resistant handling. Cold start at -40°C. MTBF > 700,000 hrs. as per Telcordia SR-332. Short Circuit / Overvoltage / Overload Protections. Designed for 5,000m operating altitude.

Main specifications pmt-4v350w1a:

Input Voltage Range: 90-132Vac ( Selectable by switch 180-264 Vac )

Input Frequency Range: 47-63Hz

Nominal Output Voltage: 4V

Output Voltage Adjustment Range: 3.78-4.70Vdc

Nominal Output Current: 60A

Output Power: 252W

Dimensions (L x W x D) :  215 x 115 x 50 mm
Dimensions (L x W x D) :  8.46" x 4.53" x 1.97"

Unit Weight :  0.81 kg (1.79 lb)
