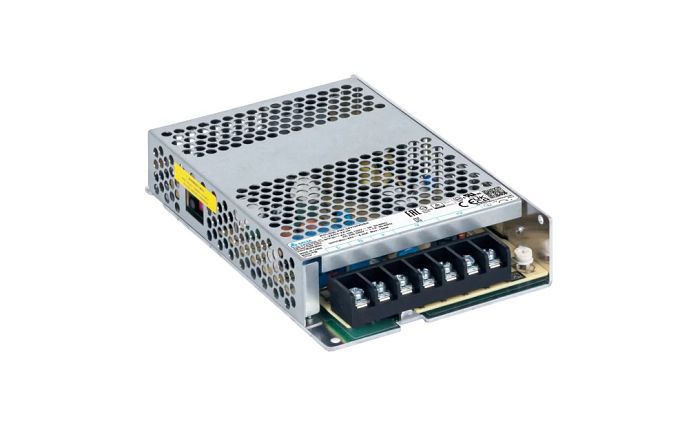

PMT-12V150W2BA

Household appliance approvals for pollution degree 3 to IEC/EN 60335-1, IEC/EN 61558-1 and IEC/EN 61558-2-16. AC input voltage range selectable by switch (90-132Vac, 170-264Vac). No load power consumption < 0.5W. Low profile design: 30mm height. Over voltage category III. Conforms to harmonic current IEC/EN 61000-3-2, Class A. High MTBF > 700,000 hrs per Telcordia SR-332.

Main specifications pmt-12V150W2BA:

Nominal Input Voltage: 100-120Vac, 200-240Vac (Selectable by Switch)

Input Frequency Range: 47-63Hz

Nominal Output Voltage: 12V

Output Voltage Adjustment Range: 10.8-13.2Vdc

Output Current: 12.5A
Output Power:150W

Dimensions: 159 x 97 x 30 mm (6.26" x 3.82" x 1.18")

Unit Weight: 0.354 kg (0.78 lb)



Download datasheet
