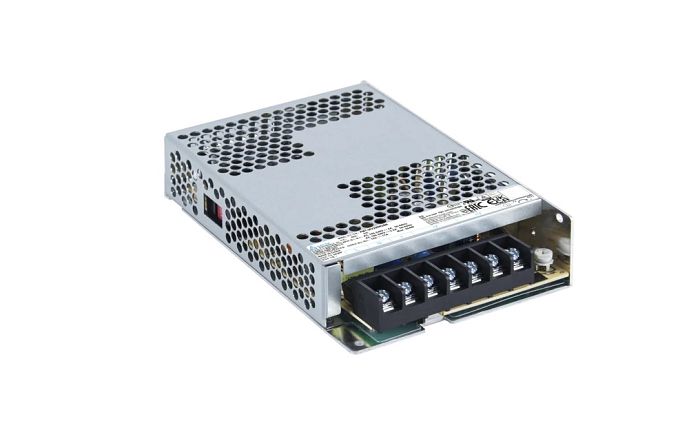

PMT-36V200W2BR

Household appliance approvals for pollution degree 3 to IEC/EN/BS EN 60335-1, IEC/EN/BS EN 61558-1 and IEC/EN/BS EN 61558-2-16. AC input voltage range selectable by switch (90-132Vac, 180-264Vac). No load power consumption < 0.5W. Low profile design: 30mm height. Over voltage category III. Wide operating temp -30°C ~70°C (Support -40°C cold start). Conforms to harmonic current IEC/EN/BS EN 61000-3-2, Class A. High MTBF > 700,000 hrs per Telcordia SR-332.

Main specifications pmt-36V200W2BR:

Nominal Input Voltage: 100-120Vac, 200-240Vac (Selectable by Switch)

Input Frequency Range:47-63Hz

Nominal Output Voltage: 36V

Output Voltage Adjustment Range: 32.4-39.6 Vdc

Output Current: 0-5.9A
Output Power: 212.4W

Dimensions:159 x 97 x 30 mm (6.26” x 3.82” x 1.18”)

Unit Weight: 0.42 kg (0.93 lb)
