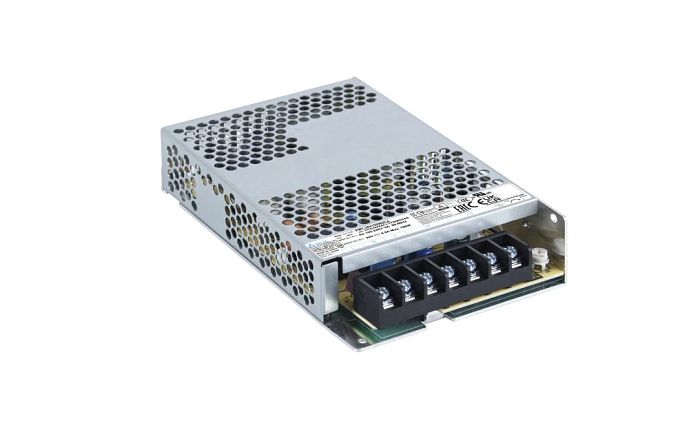

PMT-36V150W2CA

Household appliance approvals according to IEC/BS EN/EN 60335-1, IEC/BS EN/EN 61558-1 and IEC/BS EN/EN 61558-2-16. Universal AC input voltage range. No load power consumption < 0.3 W. Low profile design: 30 mm height. OVC III, Pollution Degree 3. Wide operating temp -30°C ~70°C (Support -40°C cold start). Conforms to harmonic current IEC/BS EN/EN 61000-3-2, Class A. High MTBF > 700,000 hrs per Telcordia SR-332.

Main specifications pmt-36V150W2CA:

Nominal Input Voltage: 100-240 Vac

Input Frequency Range:47-63Hz

Nominal Output Voltage: 36V

Output Voltage Adjustment Range: 32.4-39.6 Vdc

Output Current: 0-4.3A
Output Power:154.8W

Dimensions:159 x 97 x 30 mm (6.26” x 3.82” x 1.18”)

Unit Weight: 0.392 kg (0.86 lb)



Download datasheet
