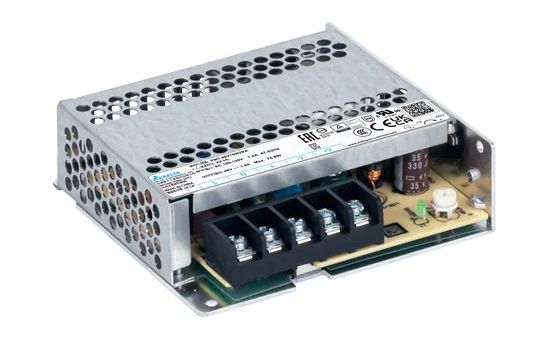

PMT-24V75W2BA

Household appliance approvals to IEC/EN 60335-1, IEC/EN 61558-1 and IEC/EN 61558-2-16. Universal AC input voltage range. No load power consumption < 0.3W. Low profile design : 30mm height. OVC III, Pollution Degree 3. Wide operating temp -30°C ~70°C (Support -40°C cold start). Conforms to harmonic current IEC/EN 61000-3-2, Class A. High MTBF > 700,000 hrs per Telcordia SR-332. Compliance with SEMI-F47.

Main specifications PMT-24V75W2BA:

Nominal Input Voltage: 100-240 Vac

Input Frequency Range:47-63Hz

Nominal Output Voltage: 24V

Output Voltage Adjustment Range: 21.6-26.4Vdc

Output Current: 3.2A
Output Power: 76.8W

Dimensions: 99 x 97 x 30 mm (3.90” x 3.82” x 1.18”)

Unit Weight: 0.216 kg (0.48 lb)
