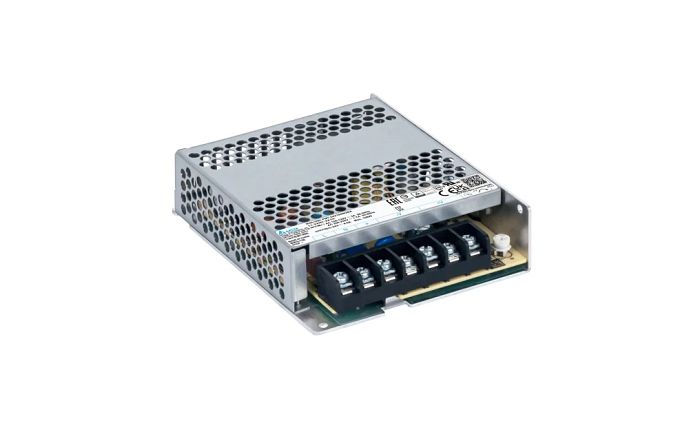

PMT-48V100W2BA

Household appliance approvals according to IEC/EN 60335-1, IEC/EN 61558-1 and IEC/EN 61558-2-16. Universal AC input voltage range. No load power consumption < 0.3W. Low profile design : 30mm height. OVC III, Pollution Degree 3. Wide operating temp -30°C ~ 70°C (Support -40°C cold start). Conforms to harmonic current IEC/EN 61000-3-2, Class A. High MTBF > 700,000 hrs per Telcordia SR-332. Compliance with SEMI-F47.

Main specifications pmt-48v100w2Ba:

Nominal Input Voltage: 100-240Vac

Input Frequency Range: 47-63Hz

Nominal Output Voltage: 48V

Output Voltage Adjustment Range: 43.2-52.8Vdc

Output Current: 2.3A
Output Power: 110W

Dimensions: 129 x 97 x 30 mm (5.08" x 3.82" x 1.18")
Unit Weight: 0.285 kg (0.63 lb)

Download datasheet
