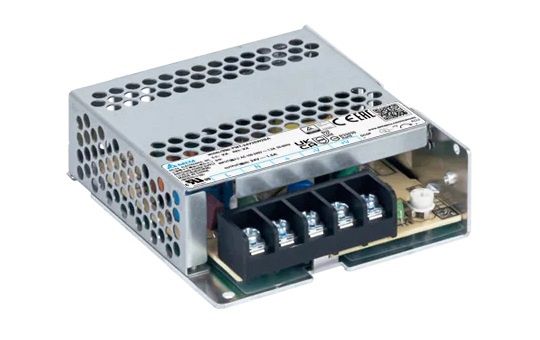

PMT-24V35W2BA

Household appliance approvals according to IEC/EN60335-1, IEC/EN 61558-1 and IEC/EN 61558-2-16. Universal AC input voltage range. No load power consumption < 0.3W. Low profile design : 29mm height. OVC III, Pollution Degree 3. Wide operating temp -30°C ~ 70°C (Support -40°C cold start). Conforms to harmonic current IEC/EN 61000-3-2, Class A. High MTBF > 700,000 hrs per Telcordia SR-332. Compliance with SEMI-F47.

Main specifications pmt-24V35W2BA:

Nominal Input Voltage: 100-240Vac

Input Frequency Range: 47-63Hz

Nominal Output Voltage: 24V

Output Voltage Adjustment Range: 21.6-26.4Vdc

Output Current: 1.5A
Output Power: 36W

Dimensions: 99 x 82 x 29 mm (3.90” x 3.23” x 1.14”)
Unit Weight: 0.165 kg (0.36 lb)
