Delta PMR series

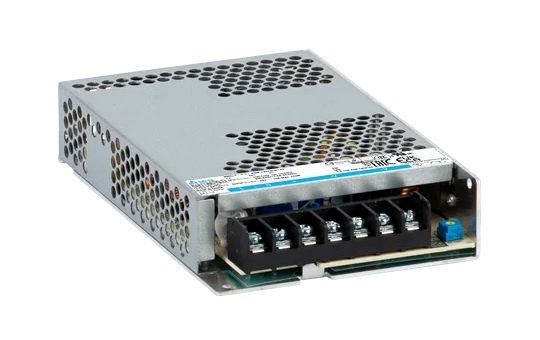

PMR-36V240W1AT
Universal AC input voltage. Built-in active PFC and conforms to harmonic current IEC/EN 61000-3-2, Class A and Class D. Lower no load power consumption. Low profile design: 30 mm height. Household appliance approvals according to IEC/EN 60335-1, IEC/EN 61558-1 and IEC/EN 61558-2-16. Wide operating temp -30°C ~70°C (Support -40°C cold start).
Main specifications pmr-36V240W1AT:
Input Voltage Range: 90-264Vac
Input Frequency Range: 47-63Hz
Nominal Output Voltage: 36V
Output Voltage Adjustment Range: 32.4-39.6 Vdc
Nominal Output Current: 6.7A
Output Power: 240W
Dimensions (L x W x D) : 159 x 97 x 30 mm (6.26” x 3.82” x 1.18”)
Unit Weight : 0.45 kg (0.99 lb)
