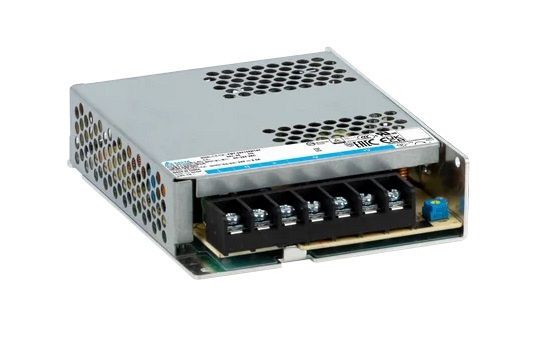

PMR-48V150W1AT

Universal AC input voltage. Built-in active PFC and conforms to harmonic current IEC/EN 61000-3-2, Class A and Class D. No load power consumption < 0.5 W. Low profile design: 30 mm height . Household appliance approvals according to IEC/EN 60335-1, IEC/EN 61558-1 and IEC/EN 61558-2-16. Wide operating temp -30°C ~70°C (Support -40°C cold start).



Main specifications PMR-48V150W1AT:

Input Voltage Range: 90-264 Vac

Input Frequency Range: 47-63Hz

Nominal Output Voltage: 48V

Output Voltage Adjustment Range: 43.2-52.8 Vdc

Nominal Output Current: 3.3A

Output Power: 150W

Dimensions (L x W x D) :  129 x 97 x 30 mm (5.08” x 3.82” x 1.18”)

Unit Weight :  0.35 kg (0.77 lb)
