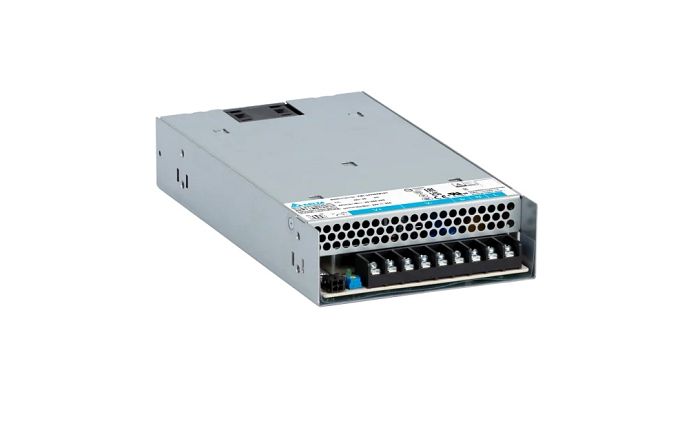

PMR-36V600W1BT

Universal AC input voltage. Built-in active PFC and conforms to harmonic current IEC/EN 61000-3-2, Class A and Class D. No load power consumption < 0.5 W. Low profile design: 30 mm height . Household appliance approvals according to IEC/EN 60335-1, IEC/EN 61558-1 and IEC/EN 61558-2-16. Wide operating temp -30°C ~70°C (Support -40°C cold start).



Main specifications PMR-36V600W1BT:

Input Voltage Range: 90-264 Vac

Input Frequency Range: 47-63Hz

Nominal Output Voltage: 36V

Output Voltage Adjustment Range: 32.4-39.6 Vdc

Nominal Output Current: 16.6A

Output Power: 600W

Dimensions (L x W x D) :  225 x 124 x 41 mm

Unit Weight :  1.2 kg (2.65 lb)
