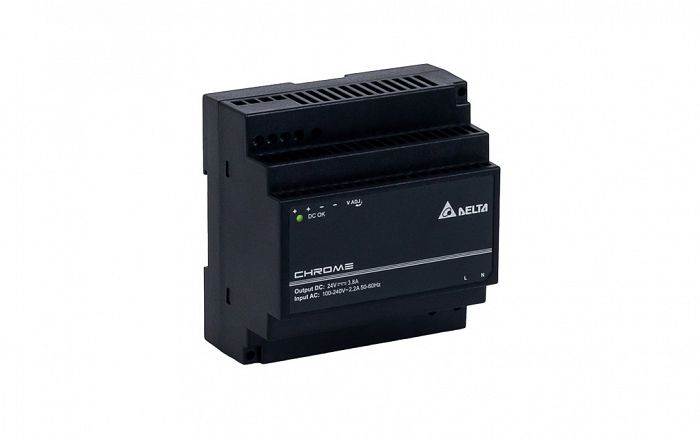

DRC-24V100W1AZ

Protection Class II, Double Isolation (No Earth connection is required). Universal AC input voltage and full power up to 55°C. Power will not de-rate for the entire input voltage range Efficiency > 87.0% @ 115Vac, > 89.0% @ 230Vac. NEC Class 2 / Limited Power Source (LPS) certified. Overvoltage / Overcurrent / Over Temperature Protections.

main specifications DRC-24V100W1AZ:

Input Voltage Range: 90-264Vac ( 125-375 Vdc )

Input Frequency Range: 47-63Hz

Nominal Output Voltage: 24V

Output Voltage Adjustment Range: 20-24.48Vdc

Nominal Output Current: 3.8A

Output Power: 91W

Dimensions (L x W x D) :  91 x 89.9 x 55.6 mm
Dimensions (L x W x D) :  3.58" x 3.54" x 2.19"

Unit Weight :  0.35 kg (0.77 lb)
