Now with household appliance approvals IEC/EN 60335-1.

Protection Class II, Double Isolation (No Earth connection is required). . 4kV Electrical Fast Transient / Burst. Universal AC input voltage and full power up to 55°C. High efficiency up to 80.0%. NEC Class 2 / Limited Power Source (LPS) certified. Overvoltage / Overcurrent / Over Temperature Protections.

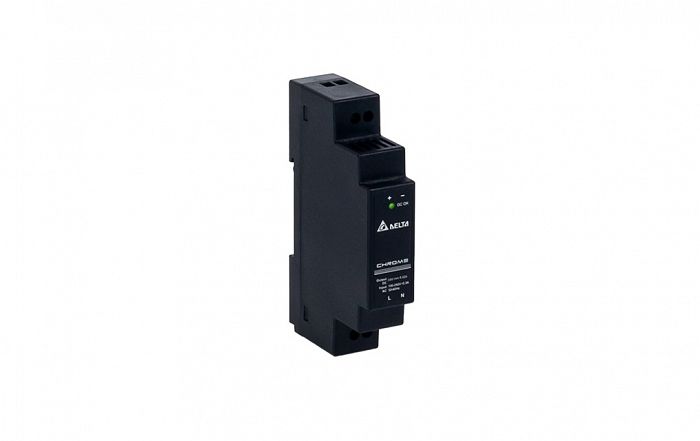

main specifications DRC-24V10W1HZ:

Input Voltage Range: 90-264Vac ( 125-375 Vdc )

Input Frequency Range: 50-60Hz

Nominal Output Voltage: 24V

Nominal Output Current: 0.42A

Output Power: 10W

Dimensions (L x W x D) :  91 x 18 x 55.6 mm (3.58" x 0.71" x 2.19")

Unit Weight :  0.065 kg (0.14 lb)
