Universal AC input voltage range. Built-in active PFC and up to 94% efficiency. Full power from -25°C to +60°C operation @ 5000m or 16400 ft. altitude. Power Boost of 150% up to 7 seconds. Advanced Power Boost (APB) – protect system and ensure continuing operation when large inrush current detected due to faulty load on a multiple load connection. DNV GL approval for maritime applications. Built-in DC OK Contact and LED indicator for DC OK/ Overload. Conformal coating on PCBAs to protect against common dust and chemical pollutants.

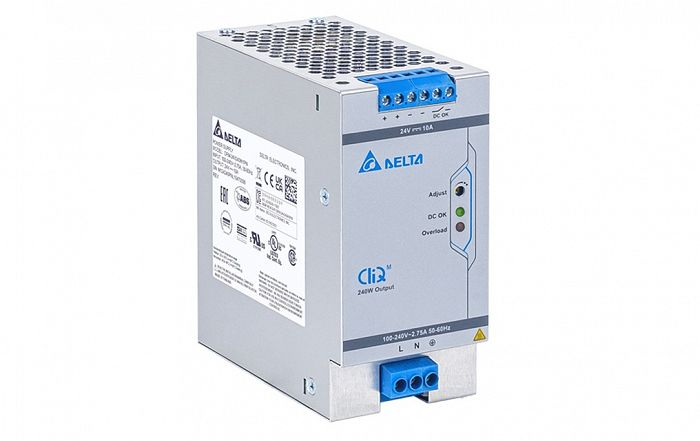

Main specifications DRM-24V240W1PN:

Input Voltage Range: 85-276Vac ( 88-375Vdc )

Input Frequency Range: 47-63Hz

Nominal Output Voltage: 24V

Output Voltage Adjustment Range: 24-28Vdc

Output Current: 10A

Output Power: 240W



Dimensions (L x W x D) :  124 x 60 x 117 mm (4.88" x 2.36" x 4.61")

Unit Weight :  0.94 kg (2.07 lb)
