Universal AC input voltage range. Built-in active PFC with up to 94% efficiency. Full power from -25°C to +60°C @ 5000m (16400 ft.). Power Boost of 150% up to 7 seconds. Advanced Power Boost (APB) – protect system and ensure continuing operation when large inrush current detected due to faulty load on a multiple load connection. DNV GL approval for maritime applications. DC OK Contact and LED indicator for DC OK/ Overload. Conformal coating on PCBAs to protect against common dust and chemical pollutants.

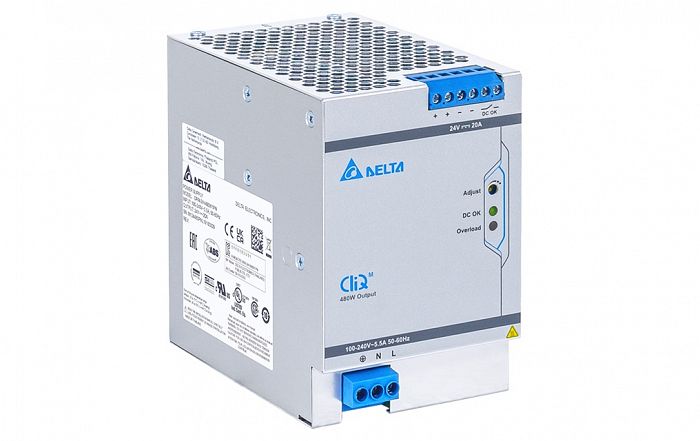

Main specifications DRM-24V480W1PN:

Input Voltage Range: 85-276Vac (110-300Vdc)

Input Frequency Range: 47-63Hz

Nominal Output Voltage: 24V

Output Voltage Adjustment Range: 24-28Vdc

Output Current: 20A

Output Power: 480W


Dimensions: 124 x 82 x 127 mm (4.88" x 3.23" x 5.00")

Unit Weight: 1.40 kg (3.09 lb)
