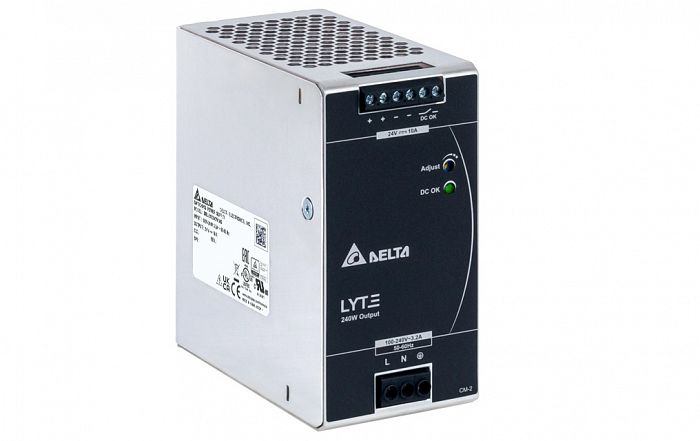

DRL-24V240W1AS

 Universal AC input voltage. Built-in constant current circuit for reactive loads. Up to 90.0% efficiency. Full power from -20°C to +50°C operation at 230Vac @ 5000 meters or 16400 feet altitude. Built-in DC OK relay contact option available. Compliance to SEMI F47 @ 200Vac. Conformal coating on PCBAs to protect against common dust and chemical pollutants.

main specifications DRL-24V240W1AS:

Input Voltage Range: 85-264Vac

Input Frequency Range: 47-63Hz

DC Input Voltage Range: 120-375Vdc

Nominal Output Voltage: 24V

Output Voltage Adjustment Range: 22-28Vdc

Output Current: 10A

Output Power: 240W

Dimensions: 123.6 x 60 x 117.6 mm (4.87" x 2.36" x 4.63")

Unit Weight: 0.80 kg (1.76 lb)
