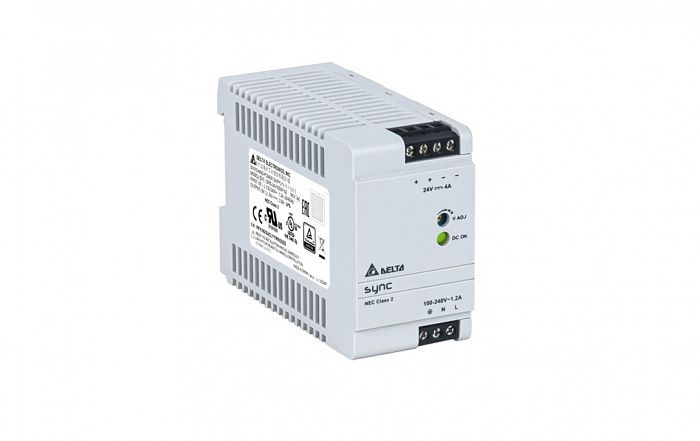

DRS-24V100W1NZ

Ultra-compact size and galvanic isolation up to 3.0KVac between input to output and input to ground. Universal AC input voltage and full power from -10°C to +55°C operation. Up to 89.0% efficiency. Low earth leakage current < 0.5mA @ 264Vac. Built-in DC OK relay contact option available. Extreme low temperature cold start at -40°C. NEC Class 2 / Limited Power Source (LPS) certified.



main specifications drs-24v100w1nz:

Nominal Input Voltage: 100-240Vac

Input Voltage Range: 85-264Vac

Nominal Input Frequency: 50-60Hz

Input Frequency Range: 47-63Hz

DC Input Voltage Range: 120-375Vdc

Nominal Output Voltage: 24V

Output Voltage Adjustment Range: 24-28Vdc

Output Current: 4A

Output Power: 96W

Line Regulation: < 0.5% (@ 85-264Vac, 100% load)

Load Regulation: < 1.0% (@ 85-264Vac, 0-100% load)
