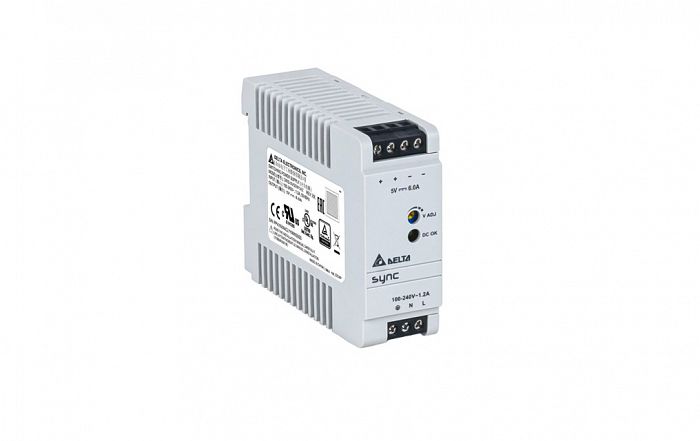

DRS-5V50W1AZ

Ultra-compact size and galvanic isolation up to 3.0KVac between input to output and input to ground. Universal AC input voltage and full power from -10°C to +55°C operation. Up to 89.0% efficiency. Low earth leakage current < 0.5mA @ 264Vac. Built-in DC OK relay contact option available. Extreme low temperature cold start at -40°C. NEC Class 2 / Limited Power Source (LPS) certified.



main specifications drs-5v50w1az:

Nominal Input Voltage: 100-240Vac

Input Voltage Range: 85-264Vac

Nominal Input Frequency: 50-60Hz

Input Frequency Range: 47-63Hz

DC Input Voltage Range: 120-375Vdc

Nominal Output Voltage: 5V

Output Voltage Adjustment Range: 5.0-5.5Vdc

Output Current: 6A

Output Power: 30W
