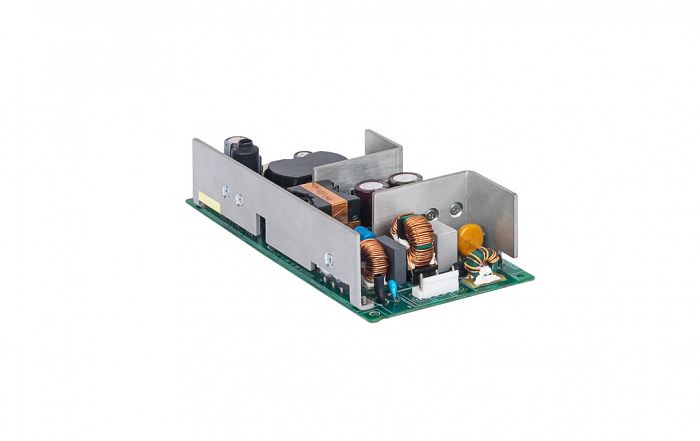

PJB-24V240W

Universal AC Input voltage range. Up to 92.5% efficiency. Power Boost of 200% for 10 secondsHigh PF > 0.97 and conforms to harmonic current. IEC/EN 61000-3-2, Class A. Conformal coating on PCBA to protect against common dust and chemical pollutants. Versatile configuration options: Open Frame, L Frame, EnclosedRemote ON/OFF option for selected models.

Main specifications pjb-24v240w:

Input Voltage Range: 85-264Vac

Input Frequency Range: 47-63Hz

Nominal Output Voltage: 24V

Nominal Output Current 10A

Output Power: 240W

Dimensions (L x W x D) :  180 x 84 x 42 mm (Open Frame) 212 x 98 x 59 mm (Enclosed)

Unit Weight :  0.44 kg (0.97 lb)  (Open Frame) 0.70 kg (1.54 lb)  (Enclosed)
