Delta PJB series

Universal AC Input voltage range. Up to 93.5% efficiency. Power Boost of 200% for 10 seconds. High PF up to 0.99 and conforms to harmonic current IEC/EN 61000-3-2, Class A. Conformal coating on PCBA to protect against common dust and chemical pollutants. Versatile configuration options: Open Frame, L Frame, Enclosed. Remote ON/OFF option for selected models.

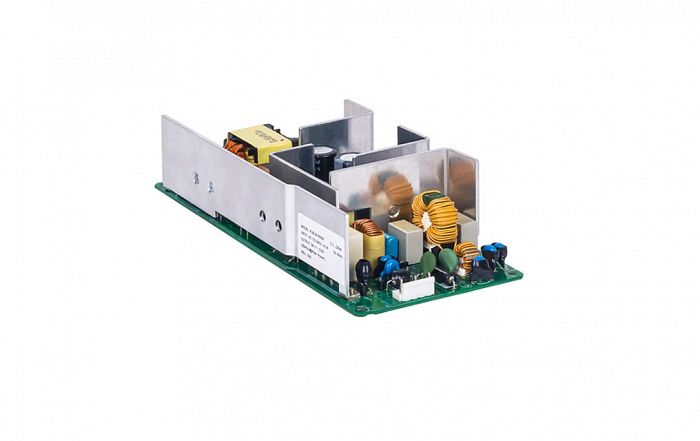

Main specifications PJB-24V300W:

Input Voltage Range: 85-264Vac

Input Frequency Range: 47-65Hz

Output Voltage Adjustment Range: 21.6-26.4Vdc

Output Current: 12.5A

Output Power: 300W

Dimensions (LxWxD): 222 x 95 x 53.6 mm (Open Frame)
                                    252 x 108 x 65.4 mm (L Frame)
                                    252 x 108 x 66 mm (Enclosed)

Unit Weight: 0.64 kg (1.41 lb) (Open Frame)
                    0.95 kg (2.09 lb) (L Frame)
                    1.05 kg (2.31 lb) (Enclosed)
