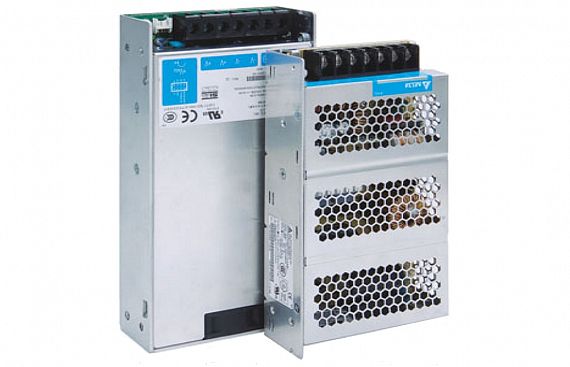

- Universal AC input voltage range
- Power will not de-rate for the entire input voltage range (except PMC-24V600W1BA)
- Full corrosion resistant aluminium casing (except PMC-05V15W1AA and PMC-24V600W1BA)
- Conforms to harmonic current IEC/EN 61000-3-2, Class A (except PMC-24V150WA)
- High MTBF > 700,000 hrs per Telcordia SR-332
- Safety approval according to IEC/EN/UL 60950-1 (ITE standard) and EMI to EN 55022, Class B
- Also available: IP20 and Front Face connectors for selected models
| Model Name |
Phase |
PFC |
Output Voltage |
Output Current |
Output Power |
Input Voltage Range |
Dimensions (L x W x H) |
Download datasheet |
| PMC-05V015W1AA |
Phase I |
|
5V |
3.00A |
15W |
85-264Vac |
77 x 51 x 28 mm |
|
| PMC-12V150W1BA |
Phase I |
|
12V |
12.5A |
150W |
85-264Vac |
178 x 97 x 38 mm |
|
| PMC-12V600W1BA |
Phase I |
|
12V |
8.33A |
100W |
85-264Vac |
158 x 97 x 38 mm |
|
| PMC-24V150W1BA |
Phase I |
|
24V |
6.25A |
150W |
85-264Vac |
178 x 97 x 38 mm |
|
| PMC-24V300W1BA |
Phase I |
|
24V |
12.5A |
300W |
85-264Vac |
199 x 105 x 41 mm |
|
| PMC-24V600W1BA |
Phase I |
|
24V |
25.0A |
600W |
85-264Vac |
215 x 120 x 61 mm |
|
| PMC-24V600W1RW |
Phase I |
|
24V |
25A |
600W |
85-264Vac |
190 x 120 x 61 mm |
|
| PMC-48V150W1BA |
Phase I |
|
48V |
3.125A |
150W |
85-264Vac |
178 x 97 x 38 mm |
|
| PMC-48V600W1BA |
Phase I |
|
12V |
8.33A |
100W |
85-264Vac |
158 x 97 x 38 mm |
|
| PMC-DSPV100W1A |
Phase I |
|
24V / 5V |
4.00A / 7.00A |
100W |
85-264Vac |
178 x 97 x 38 mm |
|
