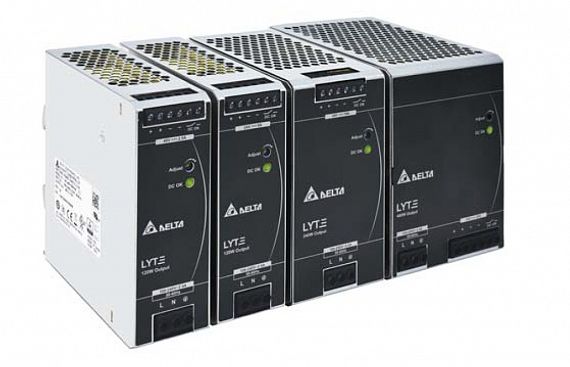

Delta Lyte DIN Rail Power Series

Competitive Price
General Industrail Application
Panel and Din rail mounting options
Universal AC input voltage
Built-in constant current circuit for reactive loads
Full power from -10°C to +50°C operation at 230Vac @ 5000m or 16400 feet altitude
Built-in DC OK relay contact option available
Conformal coating on PCBAs to protect against common dust and chemical pollutants
Compliance to SEMI F47 @ 200Vac

Model Name	Phase	Output Voltage	Output Current	Output Power	Input Voltage Range	Dimensions (L x W x H)
DRL-12V120W1EN	Phase I	12V	10A	120W	90-264Vac	123.6 x 30 x 116.8 mm
DRL-12V240W1EN	Phase I	12V	20A	240W	90-264Vac	123.6 x 40 x 116.8 mm
DRL-12V75W1AZ	Phase I	12V	6.25A	75W	85-264Vac	123.6 x 27 x 102 mm
DRL-24V120W1AS	Phase I	24V	5A	120W	85-264Vac	123.6 x 40 x 117.6 mm
DRL-24V120W1EN	Phase I	24V	5A	120W	90-264Vac	123.6 x 30 x 116.8 mm
DRL-24V240W1AS	Phase I	24V	10A	240W	85-264Vac	123.6 x 60 x 117.6 mm
DRL-24V240W1EN	Phase I	24V	10A	240W	90-264Vac	123.6 x 40 x 116.8 mm
DRL-24V480W1AS	Phase I	24V	20A	480W	85-264Vac	123.6 x 85.5 x 128.5 mm
DRL-24V480W1EN	Phase I	24V	20A	480W	90-264Vac	123.6 x 56 x 116.8 mm
DRL-24V75W1AZ	Phase I	12V	6.25A	75W	85-264Vac	123.6 x 27 x 102 mm
DRL-48V120W1AS	Phase I	48V	2.5A	120W	85-264Vac	123.6 x 40 x 117.6 mm
DRL-48V120W1EN	Phase I	48V	2.5A	120W	90-264Vac	123.6 x 30 x 116.8 mm
DRL-48V240W1EN	Phase I	48V	5A	240W	90-264Vac	123.6 x 40 x 116.8 mm
DRL-48V480W1EN	Phase I	48V	10A	480W	90-264Vac	123.6 x 56 x 116.8 mm
DRL-48V75W1AZ	Phase I	48V	1.57A	75W	85-264Vac	123.6 x 27 x 102 mm
