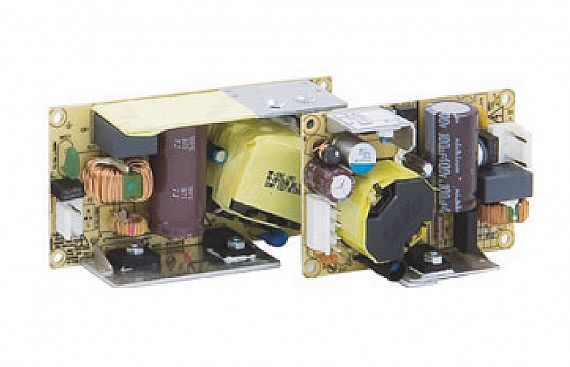

Delta PJT series - Switch-Mode

pjt

Model Name	Phase	Output Voltage	Output Current	Output Power	Input Voltage Range	Dimensions (L x W x H)
PJT-12V100WBAA	Phase I	12V	8.33A	100W	90-264Vac	127 x 76.2 x 31 mm
PJT-12V100WBBA	Phase I	12V	6.67A / 8.33A	80W / 100W	90-264Vac	101.6 x 50.8 x 31.8 mm
PJT-12V40WBAA	Phase I	12V	3.33A	40W	90-264Vac	76.2 x 50.8 x 22.9 mm
PJT-12V65WBAA	Phase I	12V	5.00A	60W	90-264Vac	101.6 x 50.8 x 30 mm
PJT-15V100WBAA	Phase I	15V	6.67A	100W	90-264Vac	127 x 76.2 x 31 mm
PJT-15V100WBBA	Phase I	15V	5.33A / 6.67A	80W / 100W	90-264Vac	101.6 x 50.8 x 31.8 mm
PJT-15V40WBAA	Phase I	15V	2.67A	40W	90-264Vac	76.2 x 50.8 x 22.9 mm
PJT-15V65WBAA	Phase I	15V	4.20A	63W	90-264Vac	101.6 x 50.8 x 30 mm
PJT-18V100WBAA	Phase I	18V	5.55A	100W	90-264Vac	127 x 76.2 x 31 mm
PJT-18V100WBBA	Phase I	18V	4.44A	80W	90-264Vac	101.6 x 50.8 x 31.8 mm
PJT-18V40WBAA	Phase I	18V	22.2A	40W	90-264Vac	76.2 x 50.8 x 22.9 mm
PJT-18V65WBAA	Phase I	18V	3.61A	65W	90-264Vac	101.6 x 50.8 x 30 mm
PJT-24V100WBAA	Phase I	24V	4.17A	100W	90-264Vac	127 x 76.2 x 31 mm
PJT-24V100WBBA	Phase I	24V	3.33 A / 4.17A	80W / 100W	90-264Vac	101.6 x 50.8 x 31.8 mm
PJT-24V40WBAA	Phase I	24V	1.66A	40W	90-264Vac	76.2 x 50.8 x 22.9 mm
PJT-24V65WBAA	Phase I	24V	2.71A	65W	90-264Vac	101.6 x 50.8 x 30 mm
PJT-27V150WBNA	Phase I	27V / 12V	5.55A / 0.5A	150W	85-264Vac	127.6 x 76.2 x 36.5 mm
